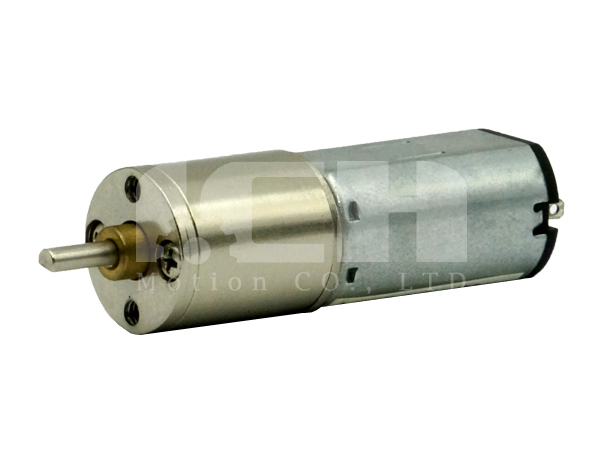

12mm DC Geared Motor

• Manufacturer Part Number: D122A2
• Gearbox Type: Spur Gearbox
• Gear Ratio:1:9.6~1:1172
• Geared Motor Voltage: 3V,6V,12V
• Gearhead Motor Size: 12mm
• Application: Electronic Lock Motor, Optic Equipment Motor, Micro Mechanism Motor
Availability:
Quantity:
  • D122A2(12mm)

  • I.CH

12mm DC Geared Motor integrated a 12mm spur gearbox of 1:10 to 1:298 gear ratio. It is a good solution to application that with limited space but low speed and high torque.


Specification

MODEL

VOLTAGE
V
NO LOADAT MAXIMUM EFFICIENCYSTALL
SPEED
rpm
CURRENT
mA
SPEED
rpm
TORQUE
kg.cm
CURRENT
mA
OUTPUT
mW
TORQUE
Kg.cm
CURRENT
mA
D122-00103012.0400403000.09902800.4400
D122-0020606.010030800.08801200.35300
D122-0011203.05050400.1100400.6400
D122-0033006.04060300.29180902600



Gear Ratio
Number of stages345678

Gear ratio i
9.62448120240600
123060150300750
   75187.5375937.5
     12.6468.81172
Length of gearbox L (mm)10.813.014.416.618.8


Mechanical Dimensions
D122A2 DWG


Encoder
111
Clutch

Ratio of  Gearbox
Gear Ratio
Number of stages 3 4 5 6 7 8

Gear ratio i
9.6 24 48 120 240 600
12 30 60 150 300 750
    75 187.5 375 937.5
      12.6 468.8 1172
Length of gearbox L (mm) 10.8 13.0 14.4 16.6 18.8


Motor
Brush Motor, Brushless Motor, Stepper Motor

Shaft
D-cut Shaft, H-cut Sahft, Rround Sahft
Full Datasheet
D122A2.pdf

Factory Ability
I.CHMOTION has been specializing in micro motors, gear motors and motor parts since 2006. Our main products are DC Brushed Motor, DC Gear Motor, Planetary Gear Motor, Planetary Gearbox, Gear Wheel and so on. Our products are widely used and applied in the following industries: entertainment systems, automobiles, home and industrial appliances and tools.
1  2  3

     Concentricity detector                                                          Ultrasonic Cleaner                                              Gear Testing Center
4  5  6

  Gear Inspection Center                                            Gear Hobber                                                          Gear Hobbing

Advantages
1. Reliable supplier, direct manufacture;
2. Open for general discussion and questions;
3. Talented team of engineers providing innovative technical solutions;
4. Fast service on return and repair results;
5. 0.1% defect rate and 1 - 2 year guarantee period.


Package
-Choosing safest packing method for your goods;
-Shipping upon customers’ conditions and request;
-Lead time is around 4 to 8 weeks.

7  8  9


FAQ
Q: What's the minimum order quantity of DC Gear Motor?
A: Our minimum order quantity depends on different Geared motor models, please email us to check. Also, we usually do not accept personal use motor orders.

Q: What's your shipping method for Planetary Gear motors?
A: For samples and packages less than 100kg, we usually suggest express shipping; For heavy packages, we usually suggest air shipping or sea shipping. But it all depends on our customers' needs.

Q: What certifications do you have?
A: We currently have CE and ROSH certifications.

Q: Can you send me your price list of Gear Motor, Gear box and Gear wheel?
A: Since we have hundreds of different products, and price varies per different specifications, we are not able to offer a price list. But we can quote within 24 hours once got your inquire to make sure you can get the price in time.

Q: What is application of this 12mm Geared motor?
A: Electronic Lock Motor, Optic Equipment Motor, Micro Mechanism Motor
