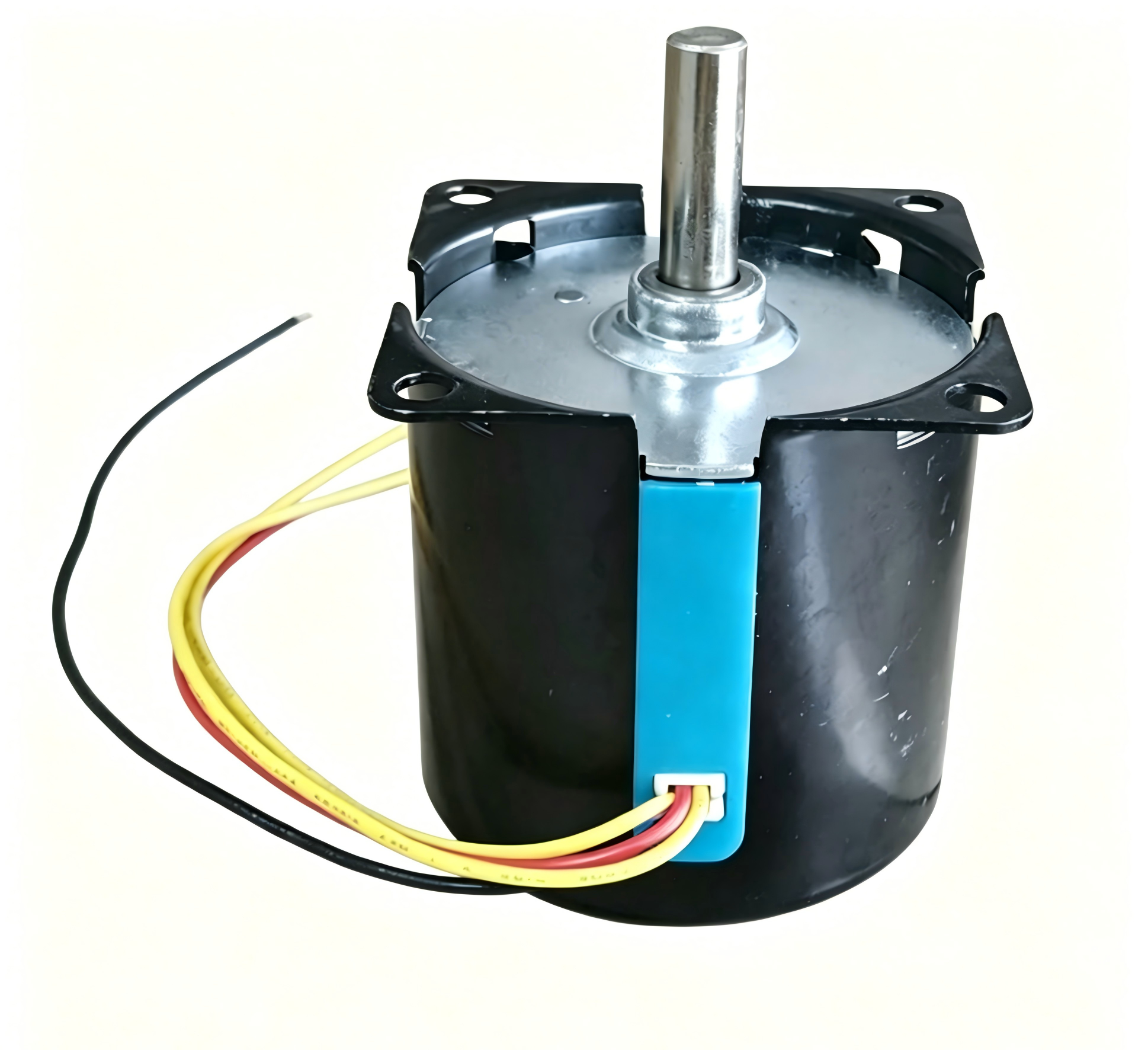

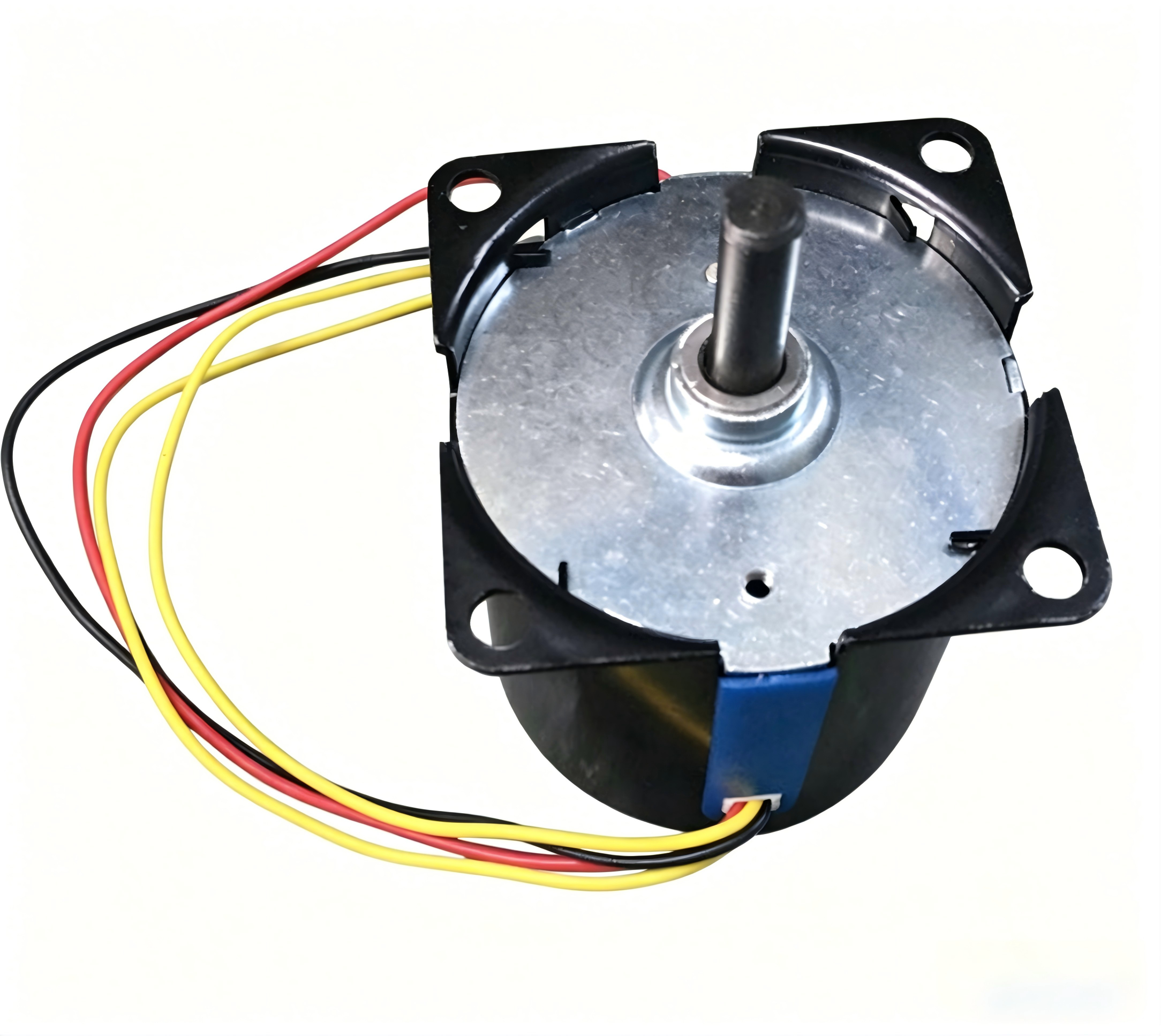

S593A(59mm)- 50/60Hz
I.CH
| Specification | ||||||||||
| Model | Output speed (rpm) | Output Torque (kg.cm / lb.in) | Voltage (V.AC) | Current (A) | Frequency (Hz) | Input Power (W) | Noise (dB) | Rotation | ||
| S1 continuous | S2 15 minutes | S2 5 minutes | ||||||||
| S593-80-1.6 | 1.6 | >80 / 70 | If intermittent running, low-speed motor can output 150kg.cm torque, it is a customization for you. Welcome to contact us freely! | 24 ********* 110 ********* 220 | <0.3 ********** <0.065 ********* <0.032 | 50/60Hz | <16 | <40 | CW / CCW / Bi-directional | |
| S593-80-02 | 2 | >80 / 70 | ||||||||
| S593-80-2.5 | 2.5 | >80 / 70 | ||||||||
| S593-80-03 | 3 | 80 / 70 | ||||||||
| S593-60-04 | 4 | 60 / 52.2 | ||||||||
| S593-50-05A | 5 | 50 / 43.5 | ||||||||
| S593-30-08 | 8 | 30 / 26 | ||||||||
| S593-25-10 | 10 | 25 / 21.8 | ||||||||
| S593-20-12 | 12 | 20 / 17.4 | ||||||||
| S593-16-15 | 15 | 16 / 13.9 | 29 / 25.2 | 35 / 30.5 | ||||||
| S593-12-20 | 20 | 12 / 10.4 | 22 / 19.1 | 26 / 22.6 | ||||||
| S593-10-25 | 25 | 10 / 8.7 | 17 / 14.8 | 21 / 18.2 | ||||||
| S593-08-30 | 30 | 8 / 7 | 15 / 13 | 17.5 / 15.2 | ||||||
| S593-05-50 | 50 | 5 / 4.35 | 9 / 7.8 | 10.5 / 9.1 | ||||||
| S593-05-60 | 60 | 4.5 / 3.9 | 7 / 6 | 8.8 / 7.7 | ||||||
| S593-03-99 | 99 | 2.5 / 2.17 | 4.5 / 3.5 | 5.3 / 4.6 | ||||||
| Note: Above datas are from motors under 50Hz. If under 60Hz, Speed*1.2 , Torque/1.2 Other speed and torque needed, please contact our sale department | ||||||||||
| Safety | |
| Insulation resistance | DC 500V 100M ohms |
| Insulation strength | AC1500V, 50Hz/min(220V motor) |
| Insulation class | E(105℃) / B(130℃) |
| Environment | Temp.-10℃~+40℃ / Humidity:<85 |
| Certification | CE ROHS CCC |
