Direct current (DC) motors have been instrumental in driving technological advancements across various industries. Among them, brush type geared DC motors have been widely adopted due to their simplicity and cost-effectiveness. A fundamental question that arises in applications requiring bidirectional motion is whether these motors are reversible. Understanding the reversibility of brush type geared DC motors is crucial for engineers and designers aiming to optimize system performance. This article delves into the operational principles of these motors, examines their reversibility, and explores the practical considerations in implementing reversible systems with dc geared motor.

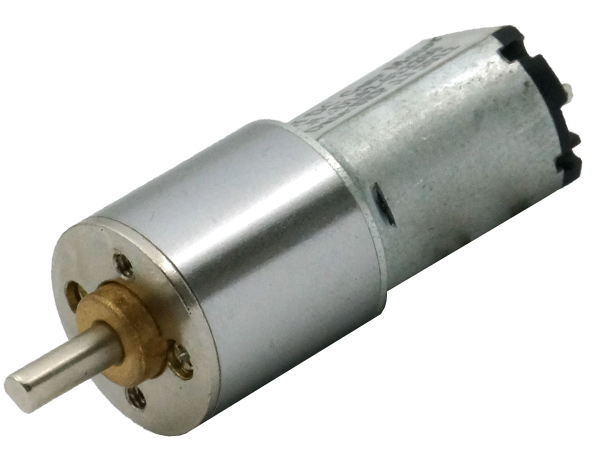

Brush type DC motors are electric motors that use brushes and a commutator to deliver current to the motor windings. The incorporation of a gearbox in these motors enhances their torque output while reducing speed, making them suitable for applications demanding high torque at low speeds. The basic components include the stator, rotor (armature), brushes, commutator, and the gear assembly. The interaction between the magnetic fields generated by the stator and the rotor produces rotational motion, which is then modified by the gearbox to achieve the desired output characteristics.
The operation of brush type DC motors is grounded in electromagnetic principles. When a DC voltage is applied, current flows through the brushes into the commutator and windings, creating a magnetic field around the rotor. According to Fleming's Left-Hand Rule, a force is exerted on the current-carrying conductors within the magnetic field of the stator, causing the rotor to turn. The commutator reverses the direction of current in the windings every half cycle, maintaining continuous rotation in one direction.
The gearbox attached to the motor shaft modifies the output by trading speed for torque. This mechanical arrangement allows the motor to drive loads that require more torque than the motor alone can provide. Gear ratios are selected based on the application's requirements, influencing the output speed and torque. The integration of gearing makes the dc geared motor versatile for various industrial applications.
Reversibility refers to the capability of a motor to change the direction of its rotation. In the context of brush type DC motors, reversibility is achieved by altering the direction of the current flow through the armature windings. This section examines the theoretical and practical aspects of reversing these motors.
According to electromagnetic theory, reversing the polarity of the voltage applied to the motor terminals changes the direction of current flow in the armature windings. This reversal leads to a change in the direction of the magnetic field generated by the rotor, resulting in a reversal of the rotational direction. Therefore, brush type DC motors are inherently reversible from a theoretical standpoint.
While the motor itself is reversible, the presence of a gearbox complicates the matter. Gearboxes are designed with gears that mesh in specific orientations, and certain types of gears, such as worm gears, are non-reversible due to their mechanical design. However, most spur and helical gear systems used in dc geared motor configurations are reversible. It is essential to consider the type of gearbox when determining the reversibility of the motor assembly.
The type of gearbox integrated with the motor significantly affects the reversibility of the geared motor system. Understanding the characteristics of different gear systems aids in selecting the appropriate motor for reversible applications.
Spur gearboxes utilize straight-cut gears and are one of the most common types of gear systems. They are efficient and suitable for reversible operations because the gears can rotate freely in both directions. The simplicity of spur gears makes them ideal for applications requiring bidirectional motion.
Helical gearboxes have gears with teeth cut at an angle, providing smoother and quieter operation compared to spur gears. Like spur gears, helical gears are generally reversible, allowing for bidirectional rotation. Their design reduces noise and vibration, making them suitable for precision applications.
Worm gearboxes consist of a worm (screw-like component) meshing with a worm gear. These systems offer high torque reduction and self-locking capabilities. However, they are typically non-reversible due to the angle of the worm thread and the friction involved. The design prevents the worm gear from driving the worm, limiting the reversibility of the motor system.
For applications requiring reversible motion, careful selection and implementation of the motor and gearbox are imperative. This section outlines the essential steps and considerations in deploying reversible brush type geared DC motors.
Reversing the motor's rotation electrically involves changing the polarity of the voltage applied to the motor terminals. This can be achieved using switches, relays, or electronic controllers like H-bridge circuits. H-bridge circuits are commonly used in control systems to allow for rapid and reliable reversal of motor direction without manual intervention.
As previously discussed, the gearbox type affects reversibility. When selecting a geared motor for reversible applications, ensure that the gearbox allows bidirectional rotation. Spur and helical gearboxes are typically suitable, while worm gearboxes may not be appropriate unless specifically designed for reversibility. Consulting with dc geared motor manufacturers can provide customized solutions tailored to specific needs.
Mechanical aspects such as inertia, load characteristics, and the presence of back-driven forces impact the reversibility of the system. High-inertia loads may require additional braking mechanisms to control deceleration when reversing. Moreover, the system should be designed to handle the mechanical stresses associated with frequent directional changes to prevent premature wear and failure.
Reversible brush type geared DC motors are utilized in various industries due to their versatility and ease of control. Understanding their applications highlights the importance of reversibility in modern electromechanical systems.
In robotics, precise control of movement, including direction changes, is essential. Reversible motors enable robots to maneuver with agility, perform complex tasks, and interact seamlessly with their environment. The dexterity afforded by reversible dc geared motor systems enhances the capabilities of robotic platforms.
Conveyor systems in manufacturing and packaging industries often require reversible operation to control the flow of products. Reversible geared motors allow for flexible system designs, enabling processes such as sorting, indexing, and accumulation. This flexibility improves efficiency and reduces the need for additional mechanical components.
Actuators employed in various applications, including valves, dampers, and precision positioning systems, benefit from reversible motors. The ability to accurately control movement in both directions is critical for maintaining system performance and achieving desired outcomes. Reversible dc geared motor solutions offer the necessary control and reliability.
Implementing reversible brush type geared DC motors presents certain challenges. Addressing these challenges ensures optimal performance and longevity of the motor system.
Frequent reversing can increase mechanical wear on the brushes, commutator, and gears. Implementing regular maintenance schedules and using high-quality components mitigates wear. Advances in brush materials and lubrication techniques enhance the durability of reversible motors.
Rapid switching of motor direction can generate electrical noise, potentially interfering with sensitive electronic equipment. Utilizing proper shielding, filtering, and grounding techniques reduces electromagnetic interference. Incorporating noise suppression components in the motor driver circuitry enhances system compatibility.
Designing control systems capable of managing reversible operations adds complexity. Employing sophisticated controllers and software algorithms facilitates precise control. Modern microcontrollers and programmable logic controllers (PLCs) provide robust solutions for managing reversible dc geared motor systems.
Technological advancements continue to enhance the capabilities of reversible brush type geared DC motors. Innovations focus on improving efficiency, control, and integration with modern systems.
The integration of motors with automation networks enables advanced control and monitoring. Communication protocols like CAN bus and Ethernet facilitate seamless interaction between the motor system and supervisory controls. This integration allows for real-time adjustments and predictive maintenance.
Developments in materials science have led to the production of more durable brushes, commutators, and gears. Advanced composites and specialized lubricants reduce friction and wear, extending the operational life of reversible motors. These improvements are critical for applications demanding high reliability.
Energy efficiency is a priority in modern motor design. Optimizing the motor's electromagnetic circuit and minimizing losses in the gearbox contribute to reduced energy consumption. Efficient reversible dc geared motor systems align with sustainability goals and lower operational costs.
Examining real-world applications provides insight into the practical implementation of reversible brush type geared DC motors.
AGVs in warehouses utilize reversible geared DC motors for navigation and material handling. The ability to reverse direction enhances maneuverability and efficiency. The use of robust control systems ensures precise movement, and durable motor designs accommodate continuous operation.
In medical devices such as infusion pumps and surgical tools, reversible motors provide controlled motion and positioning. The motors must meet stringent reliability and safety standards. The integration of high-precision dc geared motor systems fulfills these requirements while offering the necessary reversibility.
Reversible geared DC motors are used in aerospace for functions such as flap control and landing gear operations. The motors must perform reliably under extreme conditions. Advanced materials and engineering ensure that the reversible motors meet the rigorous demands of aerospace applications.
Brush type geared DC motors are inherently reversible, provided that the gearbox and system design support bidirectional operation. Understanding the principles of reversibility and the impact of gear systems is essential for engineers and designers. By carefully selecting appropriate motor and gearbox combinations, and addressing practical considerations, reversible dc geared motor systems can be effectively implemented across a spectrum of applications. Ongoing technological advancements continue to enhance the performance and reliability of these motors, solidifying their role in modern industry.
