DS332
I.CH

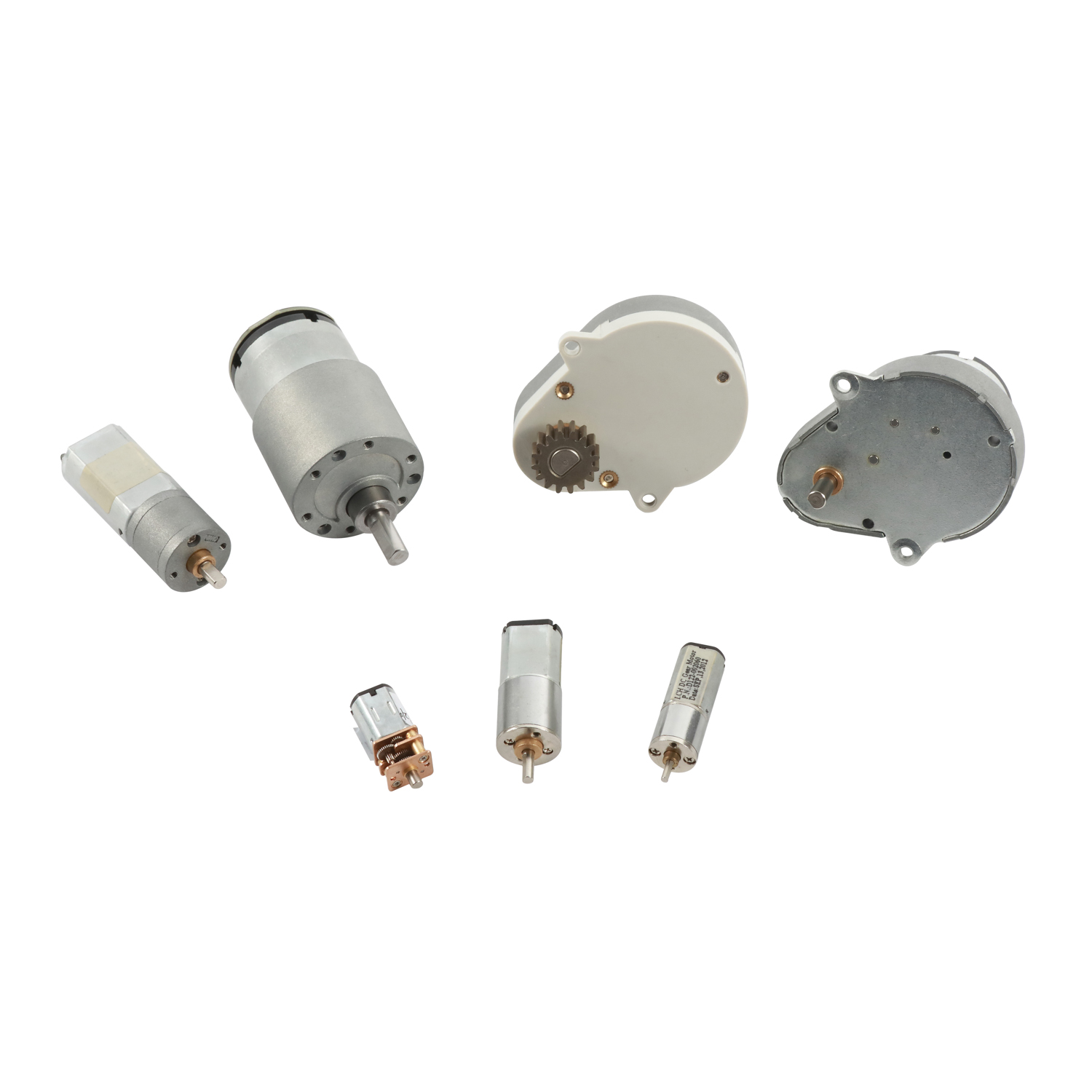

33mm DC Gear Motor
Description
DC Gear Motor is the combination of DC motor and Gearbox. Connecting the suitable motor, the output speed is decreased and the output torque can be increased. The structure of DC Geared Motor is a good solution for the application which requires low rpm and high torque.
As a manufacturer in china who has experience of ten years, we also provide OEM and ODM service.
Gearbox Specification
Number of Stages | 2 | 3 | 4 | 5 | 6 | 7 |
Reduction Ratio | 10 | 20 | 50 | 150 | 300 | 750 |
30 | 60 | 180 | 350 | 900 | ||
70 | 210 | 450 | 1050 | |||
90 | 270 | 630 | 1350 | |||
Length of Gearbox (mm) | 19.0 | 21.5 | 24.0 | 26.5 | 29.0 | 31.5 |
DC Gear Motor Specification
Model | Rated Voltage (V) | Rated Torque （kg.cm） | Rated Speed (rpm) | Rated Current (mA) | Output Power (mW) | Torque at Stall (Kg.cm) | Current at Stall (mA) | No Load Speed (rpm) | No Load Current (mA) |
D332-018050 | 24.0 | 1.8 | 145 | 220 | 3000 | 10.0 | 1000 | 180 | 50 |
D332-090490 | 24.0 | 9.0 | 11 | 100 | 1200 | 40.0 | 700 | 12 | 45 |
D332-050270 | 12.0 | 5.0 | 9 | 100 | 500 | 30.0 | 400 | 11 | 25 |
D332-018070A | 12.0 | 1.8 | 48 | 150 | 1000 | 10.0 | 600 | 60 | 50 |
D332-018070B | 12.0 | 1.8 | 80 | 320 | 1600 | 12.0 | 2000 | 96 | 100 |
D332-013030 | 12.0 | 1.3 | 230 | 600 | 3500 | 8.0 | 2600 | 280 | 100 |
D332-013050 | 6.0 | 1.3 | 125 | 850 | 1900 | 8.0 | 3500 | 152 | 170 |
D332-030090 | 12.0 | 3.0 | 48 | 320 | 2000 | 18.0 | 1500 | 60 | 50 |
D332-018050 | 24.0 | 1.8 | 100 | 150 | 2100 | 10.0 | 700 | 125 | 45 |
