In the realm of electromechanical systems, the ability to control the speed and torque of a DC motor is paramount for various applications. Gearing down a DC motor is a fundamental technique used to increase torque while reducing rotational speed, enabling precise control in mechanisms ranging from robotics to industrial automation. Understanding how to effectively gear down a DC motor not only enhances performance but also optimizes efficiency and extends the lifespan of the motor. This article delves into the principles and methodologies of gearing down a DC motor, providing an in-depth analysis suitable for engineers and enthusiasts alike. For detailed configurations and applications of dc geared motor, it is essential to comprehend the underlying mechanics and design considerations.
Direct Current (DC) motors are devices that convert electrical energy into mechanical rotational energy through the interaction of magnetic fields and conductors carrying electric current. The fundamental operation relies on the Lorentz force principle, wherein a current-carrying conductor placed within a magnetic field experiences a force perpendicular to both the direction of the current and the magnetic field itself. This force generates torque on the motor's rotor, inducing rotation.
DC motors are favored for their simplicity, ease of control, and ability to provide high starting torque. Their speed-torque characteristics make them suitable for a variety of applications, from small electronic devices to large industrial machinery. However, the inherent speed of DC motors may not always align with the operational requirements of specific applications, necessitating the implementation of gear reduction systems.
Gear reduction is a mechanism by which the output speed of a motor is decreased while the torque is proportionally increased. This is achieved through a system of gears that alter the motor's speed-to-torque ratio. Implementing gear reduction is crucial when the application demands high torque at low speeds, something that a standard DC motor may not provide efficiently on its own. By integrating a gear system, the motor can deliver the necessary mechanical advantage, enhancing its versatility and performance in applications such as robotic actuators, conveyor systems, and precision instruments.

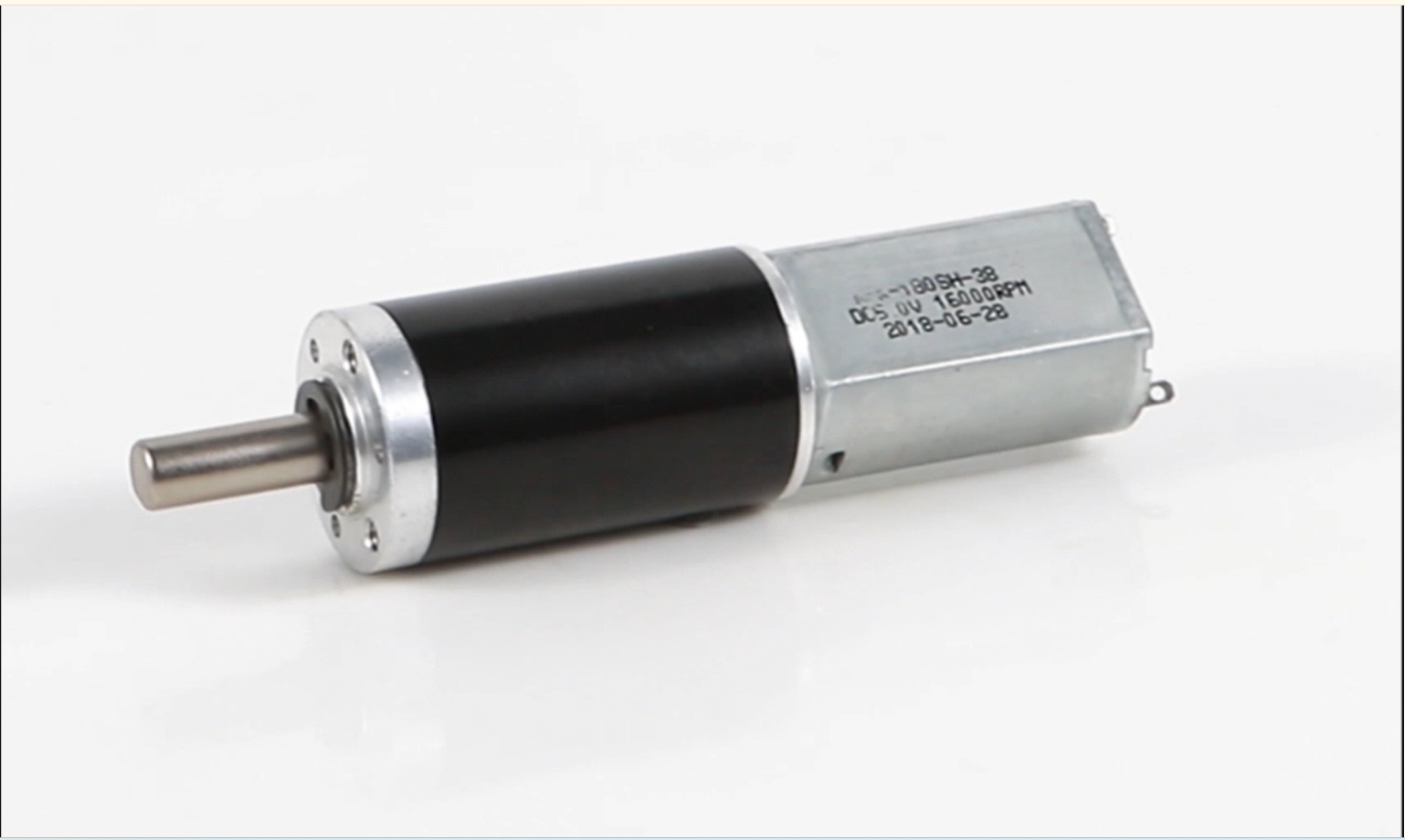

Utilizing a dc geared motor allows for a compact and efficient solution, combining the motor and gear reduction into a single unit. This integration simplifies design considerations and can improve reliability by reducing the number of separate components in a system.
The concept of mechanical advantage is central to understanding gear reduction. Mechanical advantage allows a system to amplify an input force to achieve a greater output force, or torque in rotational systems. In gear trains, this is accomplished by configuring gears of different sizes so that the input gear (driving gear) engages with an output gear (driven gear) that has a different number of teeth. The ratio of teeth between these gears determines the gear ratio, which dictates how speed and torque are modified.
Torque (\\( \\tau \\)) is calculated as the product of force (\\( F \\)) and the radius (\\( r \\)) at which the force is applied (\\( \\tau = F \\times r \\)). By increasing the radius through gear reduction, the output torque is increased while the rotational speed decreases proportionally. This relationship is vital in applications where heavy loads must be moved or precise control of movement is required.
Several gearing systems are employed to gear down DC motors, each with unique characteristics:
Spur Gears: The most common type, featuring straight teeth mounted on parallel shafts. They are simple and cost-effective but can generate noise at high speeds.
Helical Gears: Teeth are cut at an angle, allowing for smoother and quieter operation. Suitable for applications requiring high-speed rotation with reduced noise.
Bevel Gears: Designed for shafts at intersecting axes, typically at a 90-degree angle. Used in applications where the direction of rotation needs to change.
Worm Gears: Consist of a worm (screw) meshing with a worm gear (wheel), providing high reduction ratios in a compact form factor but with lower efficiency due to sliding contact.
Planetary Gears: Comprise a central sun gear, planet gears, and an outer ring gear. This arrangement provides high torque density and compactness, making it ideal for integrating into dc geared motor assemblies.
The choice of gearing system depends on factors such as the required gear ratio, space constraints, efficiency, noise levels, and cost considerations. Understanding the advantages and limitations of each type is essential for selecting the appropriate gear reduction method.
A gearbox is a mechanical assembly that houses a series of gears configured to achieve the desired gear ratio. When applied to DC motors, gearboxes can be mounted externally or integrated into the motor housing. They translate the high-speed, low-torque output of the motor into a lower-speed, higher-torque output suitable for the application.
Selecting the correct gearbox involves considering the required gear ratio, torque capacity, efficiency, size, weight, and environmental factors such as temperature and exposure to contaminants. Precision applications might require gearboxes with minimal backlash and high positional accuracy, while industrial applications may prioritize robustness and load capacity.
The gear ratio (\\( GR \\)) is a critical parameter that defines the relationship between the input speed and torque and the output speed and torque:
\\( GR = \\frac{\\text{Number of Teeth on Output Gear}}{\\text{Number of Teeth on Input Gear}} \\)
This ratio inversely affects speed and torque as follows:
\\( \\text{Output Speed} = \\frac{\\text{Input Speed}}{GR} \\)
\\( \\text{Output Torque} = \\text{Input Torque} \\times GR \\times \\text{Efficiency} \\)
Efficiency accounts for power losses due to friction and other factors within the gearbox. Understanding these calculations is essential for designing systems that meet specific performance criteria.
DC geared motors integrate the motor and gearbox into a single unit, offering several advantages:
Compactness: Saves space by combining components.
Simplicity: Eases installation and reduces alignment issues.
Cost-Effectiveness: Often more economical than purchasing separate components.
When selecting a dc geared motor, consider factors such as voltage, current draw, stall torque, output speed, duty cycle, and thermal characteristics. It's also important to ensure compatibility with control systems and that the geared motor meets the application's environmental and operational requirements.
Choosing the right gearbox is crucial for the system's overall performance and reliability. Key considerations include:
Load Requirements: Determine the maximum torque and power needs.
Speed Requirements: Establish the desired output speed for the application.
Operating Environment: Consider temperature, humidity, exposure to dust or chemicals.
Size and Weight Constraints: Ensure the gearbox fits within the spatial limitations of the design.
Noise Levels: For applications where noise is a concern, select gears that operate quietly.
Maintenance: Evaluate the maintenance requirements and accessibility.
Cost: Balance performance needs with budget considerations.
Collaborating with gear manufacturers can provide insights into custom solutions or help in selecting standard gearboxes that meet specific application needs.
Materials used in gears affect performance characteristics such as strength, wear resistance, noise, and cost:
Metal Gears: Typically made from steel or brass, offering high strength and durability, suitable for high-load applications.
Plastic Gears: Made from materials like nylon or acetal, they are lighter and produce less noise but may wear faster under heavy loads.
Composite Materials: Combine metals and plastics to optimize performance characteristics.
Heat treatment and surface coatings can enhance the hardness and wear resistance of gears, extending their service life.
Gearbox efficiency affects not only performance but also thermal characteristics. Inefficient gearboxes generate excessive heat, which can degrade lubricants and reduce component life. To optimize efficiency:
Choose High-Quality Gears: Precision-cut gears with smooth surfaces reduce friction.
Ensure Proper Lubrication: Use appropriate lubricants and maintain lubrication schedules.
Consider Gearbox Design: Designs that minimize sliding contact (e.g., using rolling contact bearings) improve efficiency.
Implement Cooling Systems: In high-power applications, cooling fins or forced air may be necessary.
Precision and control are essential in robotics. Gearing down DC motors allows robotic joints and actuators to move with the necessary torque and fine positional accuracy. Compact and efficient dc geared motor units are integral in robotic arms, grippers, and mobile robots, where space and weight constraints are critical.
In manufacturing, gear reduction is used in conveyor systems, material handling equipment, and automated machinery. Gearboxes enable these systems to operate at optimal speeds and torques, ensuring smooth and efficient production processes. Durability and reliability are paramount, given the continuous operation and high loads typical in industrial settings.
Electric vehicles (EVs), scooters, and wheelchairs utilize geared DC motors to provide the necessary torque for propulsion while managing energy consumption. Gear reduction allows for efficient acceleration and the handling of various terrains, enhancing the performance and user experience of these mobility solutions.
Backlash refers to the slight movement between meshed gear teeth when reversing direction. In applications demanding high positional accuracy, backlash can introduce errors. Minimizing backlash involves precision manufacturing of gears, using preloaded gear systems, or selecting gear types inherently designed for low backlash, such as harmonic drives or certain planetary gear systems.
Advanced dc geared motor solutions address these concerns by incorporating high-precision components and assembly techniques, ensuring consistent and accurate performance.
Proper maintenance extends the lifespan of gearboxes. Regular inspection for wear, ensuring adequate lubrication, and replacing worn components prevent failures and maintain efficiency. Lubrication reduces friction and heat generation, but the type of lubricant and lubrication method (grease, oil bath, etc.) must be appropriate for the specific gearbox and operating conditions.
Additive manufacturing, or 3D printing, is revolutionizing the production of gears and gearboxes. This technology enables rapid prototyping and the creation of complex geometries that were previously difficult or impossible to manufacture. Custom dc geared motor solutions can be rapidly developed, allowing for greater innovation and adaptability in design.
The integration of sensors and IoT technology into gearboxes facilitates real-time monitoring of performance parameters such as temperature, vibration, and wear. This data enables predictive maintenance, reducing downtime and extending the operational life of equipment. Smart gearboxes contribute to Industry 4.0 initiatives, enhancing efficiency and reliability in industrial applications.
Gearing down a DC motor is a critical process that enhances the versatility and applicability of these widely used motors. By effectively reducing speed and increasing torque, gear reduction enables DC motors to meet the specific demands of diverse applications, from precision robotics to heavy-duty industrial machinery.
Understanding the principles of gear reduction, selecting the appropriate gearing system, and considering factors such as efficiency, material selection, and maintenance are essential steps in designing effective electromechanical systems. As technology advances, innovations in materials, manufacturing processes, and smart technologies continue to expand the capabilities and applications of dc geared motor solutions.
By staying informed about these developments and applying best practices in design and implementation, engineers can harness the full potential of DC motors, contributing to advancements in automation, transportation, medical devices, and countless other fields where precise and reliable motion control is paramount.
