22mm Planetary Gearbox Metal Gear

Availability:

Quantity:



Inquire Add to Basket

Model:
P223C
Brand:
I.CH

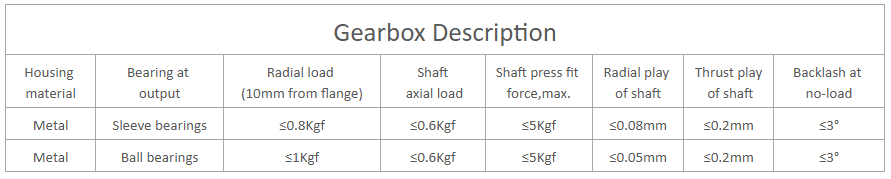

Gearbox Description
Housing material	Bearing at output	Radial load (10mm from flange)	Shaft axial load	Shaft press fit force,max.	Radial play of shaft	Thrust play of shaft	Backlash at no-load
Metal	Sleeve bearings	≤0.8Kgf	≤0.6Kgf	≤5Kgf	≤0.08mm	≤0.2mm	≤3°
Metal	Ball bearings	≤1Kgf	≤0.6Kgf	≤5Kgf	≤0.05mm	≤0.2mm	≤3°

22mm Planetary Gearbox Powder Metallurgy Gear

22mm Planetary gearbox
