32mm Planetary Gearbox Powder Metallurgy Gear

Availability:

Quantity:



Inquire Add to Basket

Model:
P324P

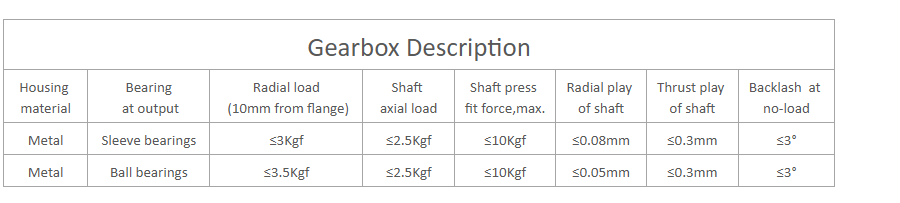

Gearbox Description
Housing material	Bearing at output	Radial load (10mm from flange)	Shaft axial load	Shaft press fit force,max.	Radial play of shaft	Thrust play of shaft	Backlash at no-load
Metal	Sleeve bearings	≤3Kgf	≤2.5Kgf	≤10Kgf	≤0.08mm	≤0.3mm	≤3°
Metal	Ball bearings	≤3.5Kgf	≤2.5Kgf	≤10Kgf	≤0.05mm	≤0.3mm	≤3°

32mm Planetary gearbox

32mm Planetary Gearbox Powder Metallurgy Helical Gear

32mm Planetary Gearbox Helical Gear

SUBSCRIBE NOW

We have an independent product design and R&D team, service team and professional quality control team. Welcome to subscribe.

We specialized in researching, developing and servicing electric motors, gearbox and high precision gears with small module. Read more >>

PRODUCT LIST

Leave a Message

QUICK LINK

CONTACT

Add：3B-B302 LianDo U Valley Guli Technology industry partk, #16 Xinggu Road, Jiangning District, Nanjing, P.R. China

Tel：+86 25 5118 0871
Fax：+86 25 5118 0872
Skype：ichmotion
Email：sales@ichmo.com

Motor Shaft Pinion Specification
Module	No. of teeth	Pressure angle	Hole diameter	Reduction ratio.
0.5	11	20°	2.28，2.48，2.98，3.16	1/5,1/19,1/27,1/71,1/100,1/139,1/264,1/516,1/721
0.5	17	20°	2.28，2.48，2.98，3.16	1/4,1/14,1/51,1/189

Motor Shaft Pinion Specification
Module	No. of teeth	Pressure angle	Hole diameter	Reduction ratio.
0.5	11	20°	2.28，2.48，2.98，3.16	1/5,1/19,1/27,1/71,1/100,1/139,1/264,1/516,1/721
0.5	17	20°	2.28，2.48，2.98，3.16	1/4,1/14,1/51,1/189

Gearbox Specification
Reduction ratio	1/4	1/5	1/14	1/19	1/27	1/51	1/71	1/100	1/139	1/189	1/264	1/516	1/721
Rated tolerance torque (Kg.cm )	2	2	4	4	6	8	8	10	10	12	12	12	12
Max momentary tolerance torque (Kg.cm )	6	6	12	12	18	24	24	30	30	36	36	36	36
Efficiency	80%	80%	70%	70%	70%	60%	60%	60%	60%	50%	50%	50%	50%
Length（L-mm）	22.1	22.6	28.5	28.5	28.5	34.9	34.9	34.9	34.9	41.3	41.3	41.3	41.3
Weight（g）	109	109	143	143	143	177	177	177	177	211	211	211	211

Gearbox Specification
Reduction ratio	1/4	1/5	1/14	1/19	1/27	1/51	1/71	1/100	1/139	1/189	1/264	1/516	1/721
Rated tolerance torque (Kg.cm )	2	2	4	4	6	8	8	10	10	12	12	12	12
Max momentary tolerance torque (Kg.cm )	6	6	12	12	18	24	24	30	30	36	36	36	36
Efficiency	80%	80%	70%	70%	70%	60%	60%	60%	60%	50%	50%	50%	50%
Length（L-mm）	22.1	22.6	28.5	28.5	28.5	34.9	34.9	34.9	34.9	41.3	41.3	41.3	41.3
Weight（g）	109	109	143	143	143	177	177	177	177	211	211	211	211
