38mm Planetary gearbox

Availability:

Quantity:



Inquire Add to Basket

Model:
P381
Brand:
I.CH

Gearbox Description
Housing material	Bearing at output	Radial load (10mm from flange)	Shaft axial load	Shaft press fit force,max.	Radial play of shaft	Thrust play of shaft	Backlash at no-load
Powder Metal	Sleeve bearings	≤5Kgf	≤3Kgf	≤15Kgf	≤0.08mm	≤0.3mm	≤3°
Powder Metal	Ball bearings	≤8Kgf	≤3Kgf	≤15Kgf	≤0.05mm	≤0.3mm	≤3°

SUBSCRIBE NOW

We have an independent product design and R&D team, service team and professional quality control team. Welcome to subscribe.

We specialized in researching, developing and servicing electric motors, gearbox and high precision gears with small module. Read more >>

PRODUCT LIST

Leave a Message

QUICK LINK

CONTACT

Add：3B-B302 LianDo U Valley Guli Technology industry partk, #16 Xinggu Road, Jiangning District, Nanjing, P.R. China

Tel：+86 25 5118 0871
Fax：+86 25 5118 0872
Skype：ichmotion
Email：sales@ichmo.com

Motor Shaft Pinion Specification
Module	No. of teeth	Pressure angle	Hole diameter	Reduction ratio.
0.6	11	20°	3.16	1/5,1/19,1/27,1/71,1/100,1/139,1/264,1/516,1/721
0.6	17	20°	3.16	1/4,1/14,1/51,1/189

Motor Shaft Pinion Specification
Module	No. of teeth	Pressure angle	Hole diameter	Reduction ratio.
0.6	11	20°	3.16	1/5,1/19,1/27,1/71,1/100,1/139,1/264,1/516,1/721
0.6	17	20°	3.16	1/4,1/14,1/51,1/189

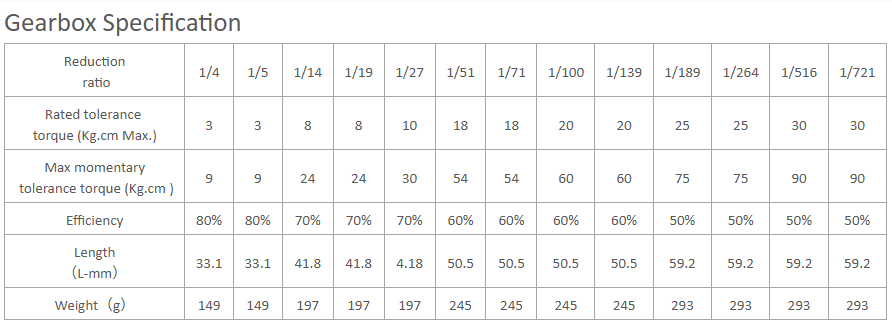

Gearbox Specification
