S493
I.CH

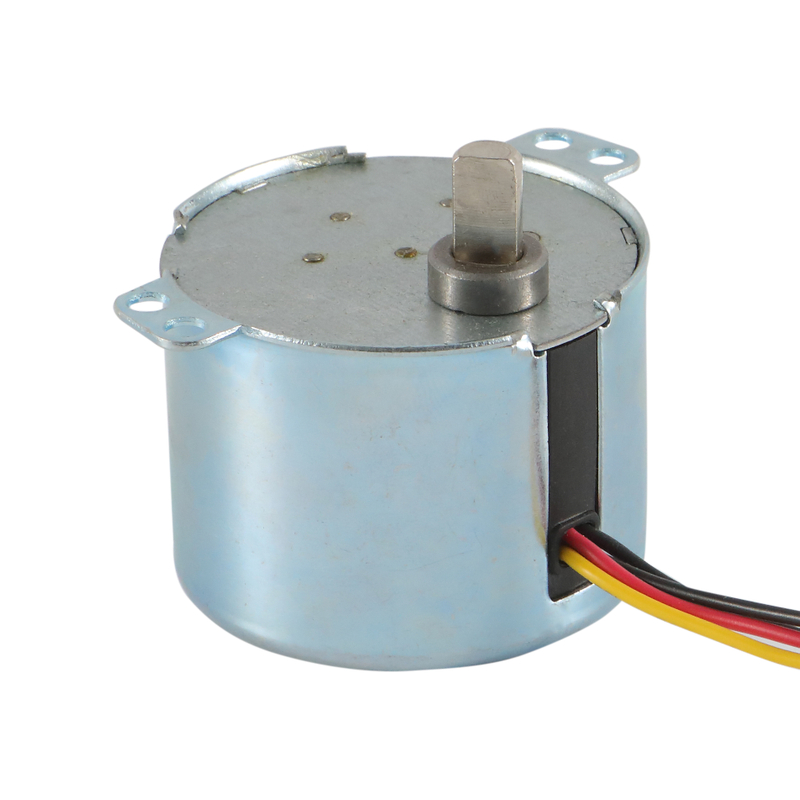

49mm AC Reversible Synchronous Motor
Specification
| Model | Output speed (rpm) | Output Torque (kg.cm / lb.in) | Voltage (V.AC) | Current (A) | Frequency (Hz) | Input Power (W) | Noise (dB) | Rotation | ||
| S1 continuous | S2 15 minutes | S2 5 minutes | ||||||||
| S493-45-1.0 | 1.04 | 45 / 39 | 60 / 52.2 | 70 / 60.9 | 24 ********* 110 ********* 220 | <0.2 ********** <0.05 ********* <0.023 | 50/60Hz | 2.5~7 | <45 | CW / CCW / Bi-directional |
| S493-30-1.5 | 1.50 | 30 / 26 | 40 / 34.8 | 46 / 40 | ||||||
| S493-22-2.0 | 2 | 22 / 19 | 30 / 26 | 35 / 30.5 | ||||||
| S493-18-2.5 | 2.5 | 18 / 15.7 | 24 / 20.9 | 28 / 24.4 | ||||||
| S493-11-4.0 | 4 | 11 / 9.6 | 15 / 13 | 17.5 / 15.2 | ||||||
| S493-09-4.8 | 4.8 | 9.4 / 8.2 | 12.5 / 10.9 | 14.5 / 12.6 | ||||||
| S493-09-5.0 | 5 | 9 / 7.8 | 12 / 10.4 | 14 / 12.2 | ||||||
| S493-08-5.8 | 5.8 | 7.6 / 6.6 | 10 / 8.7 | 12 / 10.4 | ||||||
| S493-05-9.0 | 9 | 5 / 4.35 | 6.5 / 5.7 | 7.8 / 6.8 | ||||||
| S493-03-15 | 15 | 3 / 2.6 | 4 / 3.5 | 4.6 / 4 | ||||||
| S493-02-25 | 25 | 1.8 / 1.57 | 2.4 / 2.1 | 2.8 / 2.43 | ||||||
| S493-02-30 | 30 | 1.5 / 1.3 | 2 / 1.74 | 2.3 / 2 | ||||||
| S493-01-45 | 45 | 1 / 0.87 | 1.3 / 1.13 | 1.5 / 1.3 | ||||||
| S493-01-60 | 60 | 0.75 | 1 / 0.87 | 1.2 / 1.04 | ||||||
| S493-01-75 | 75 | 0.6 | 0.8 / 0.7 | 1.0 / 0.87 | ||||||
| Note: Above datas are from motors under 50Hz. If under 60Hz, Speed*1.2 , Torque/1.2 Other speed and torque needed, please contact our sale department | ||||||||||
Safety
| Insulation resistance | DC 500V 100M ohms |
| Insulation strength | AC1500V, 50Hz/min(220V motor) |
| Insulation class | E(105℃) / B(130℃) |
| Environment | Temp.-10℃~+40℃ / Humidity: <85 |
| Certification | CE ROHS CCC |
Specification
| Model | Output speed (rpm) | Output Torque (kg.cm / lb.in) | Voltage (V.AC) | Current (A) | Frequency (Hz) | Input Power (W) | Noise (dB) | Rotation | ||
| S1 continuous | S2 15 minutes | S2 5 minutes | ||||||||
| S493-45-1.0 | 1.04 | 45 / 39 | 60 / 52.2 | 70 / 60.9 | 24 ********* 110 ********* 220 | <0.2 ********** <0.05 ********* <0.023 | 50/60Hz | 2.5~7 | <45 | CW / CCW / Bi-directional |
| S493-30-1.5 | 1.50 | 30 / 26 | 40 / 34.8 | 46 / 40 | ||||||
| S493-22-2.0 | 2 | 22 / 19 | 30 / 26 | 35 / 30.5 | ||||||
| S493-18-2.5 | 2.5 | 18 / 15.7 | 24 / 20.9 | 28 / 24.4 | ||||||
| S493-11-4.0 | 4 | 11 / 9.6 | 15 / 13 | 17.5 / 15.2 | ||||||
| S493-09-4.8 | 4.8 | 9.4 / 8.2 | 12.5 / 10.9 | 14.5 / 12.6 | ||||||
| S493-09-5.0 | 5 | 9 / 7.8 | 12 / 10.4 | 14 / 12.2 | ||||||
| S493-08-5.8 | 5.8 | 7.6 / 6.6 | 10 / 8.7 | 12 / 10.4 | ||||||
| S493-05-9.0 | 9 | 5 / 4.35 | 6.5 / 5.7 | 7.8 / 6.8 | ||||||
| S493-03-15 | 15 | 3 / 2.6 | 4 / 3.5 | 4.6 / 4 | ||||||
| S493-02-25 | 25 | 1.8 / 1.57 | 2.4 / 2.1 | 2.8 / 2.43 | ||||||
| S493-02-30 | 30 | 1.5 / 1.3 | 2 / 1.74 | 2.3 / 2 | ||||||
| S493-01-45 | 45 | 1 / 0.87 | 1.3 / 1.13 | 1.5 / 1.3 | ||||||
| S493-01-60 | 60 | 0.75 | 1 / 0.87 | 1.2 / 1.04 | ||||||
| S493-01-75 | 75 | 0.6 | 0.8 / 0.7 | 1.0 / 0.87 | ||||||
| Note: Above datas are from motors under 50Hz. If under 60Hz, Speed*1.2 , Torque/1.2 Other speed and torque needed, please contact our sale department | ||||||||||
Safety
| Insulation resistance | DC 500V 100M ohms |
| Insulation strength | AC1500V, 50Hz/min(220V motor) |
| Insulation class | E(105℃) / B(130℃) |
| Environment | Temp.-10℃~+40℃ / Humidity: <85 |
| Certification | CE ROHS CCC |
Selecting the right actuator AC gear motor is crucial for ensuring optimal performance in your application. Here are key factors to consider when making your choice:
Application Requirements: Identify the specific needs of your application. Consider factors such as load capacity, speed, and torque requirements. Different applications may necessitate different specifications, so understanding your operational parameters is essential.
Motor Type: AC gear motors come in various types, including single-phase and three-phase options. Single-phase motors are typically used for residential applications, while three-phase motors are preferred for industrial settings due to their efficiency and ability to handle larger loads. Determine which type aligns best with your project’s needs.
Gear Ratio: The gear ratio significantly affects the output speed and torque of the motor. A higher gear ratio yields more torque but reduces speed, making it suitable for heavy load applications. Conversely, a lower gear ratio increases speed but decreases torque. Assess your application to find the right balance.
Environmental Considerations: Consider the environment in which the actuator will operate. If it will be exposed to moisture, dust, or extreme temperatures, look for motors with appropriate protective features, such as IP ratings, to ensure durability and reliability.
Control Options: Evaluate how the motor will be controlled. Some applications may require advanced controls for precise speed and position management. Ensure the selected actuator AC gear motor is compatible with your control system, whether it’s a simple switch or a more sophisticated PLC setup.
Customization: If your application has unique requirements, consider a manufacturer that offers customization options. I.CH Motion provides tailored solutions, allowing you to specify dimensions, torque, and other features to meet your specific needs.
Quality and Reliability: Choose a reputable manufacturer known for high-quality products. I.CH Motion has a proven track record of producing reliable gear motors, with certifications that attest to their quality and performance.
By carefully evaluating these factors, you can select an actuator AC gear motor that meets your operational demands, enhances efficiency, and ensures long-term reliability.
FAQ
Q: What speed for the 49mm AC motor?
A: We normally make speed of 49mm AC synchronous motor from 1rpm to 75 rpm, it depends on your request, we can also customized the speed.
Q: Where can the synchronous geared motor be used?
A: It can be used in Household Electrical Appliances Motor, such as water valve control.
Q: Can I have samples for testing first?
A: Yes, definitely you can. You can order prototypes for experiment, and our MOQ for batch order is 1000pcs..
