DS122F-01&02
I.CH

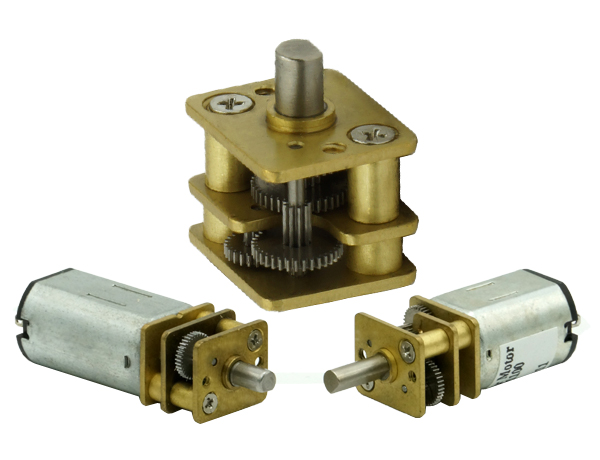

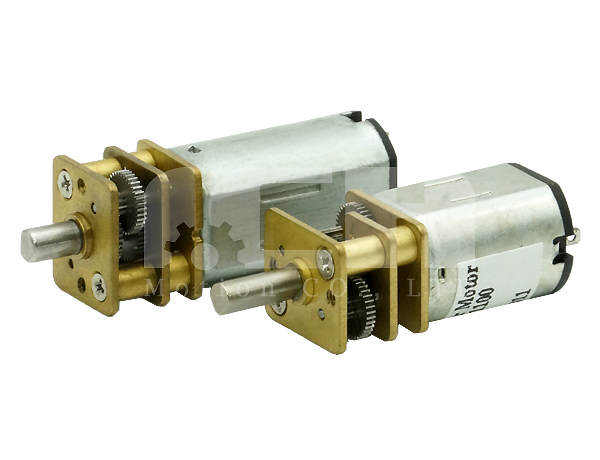

12MM DC Spur Gear Motor
Description
DC Gear Motor is a power transmission mechanism, is to use the speed of the gear as a converter, the number of motor rotation deceleration to the number of rotation, and get larger torque of the mechanism.
This is the smallest size of electric gear motor I.CH manufacturers and supplies. The voltage is 3V and 6V, and the frame size is 12mm. The design of the structure is very suitable for the application that requires low speed but the output of high torque.
In the past ten years of customer service, I.CH also offers a special accessory for customers to choose from, such as Encoder, Metal gear, and plastic gear wheel that uses in low price equipment.
The larger size of DC Gear Motor can select in 16mm, 20mm, 25mm, etc.
DC Motor with Gearbox Specification
| Reduction ratio | 1/10 | 1/19 | 1/29 | 1/60 | 1/76 | 1/102 | 1/134 | 1/197 | 1/235 | 1/298 | |
| 3V | Rated torque(g.cm) | 15 | 25 | 40 | 75 | 100 | 120 | 155 | 230 | 275 | 350 |
| Rated speed(rpm) | 1400 | 720 | 480 | 230 | 180 | 135 | 100 | 70 | 59 | 46 | |
| 6V | Rated torque(g.cm) | 24 | 40 | 60 | 115 | 150 | 200 | 235 | 345 | 410 | 520 |
| Rated speed(rpm) | 1450 | 770 | 510 | 245 | 195 | 145 | 110 | 75 | 63 | 50 | |
| Rotation direction | CW | CCW | CW | CCW | |||||||
DC Motor Specification
