DS332
I.CH

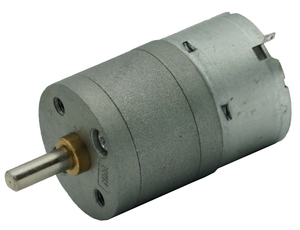

33mm DC Gear Motor
Description
The DC gear motor, namely small gear motor, uses the gear of input shaft to mesh the gear of output shaft to achieve the goal of reducing speed. The function of the gearbox is to provide a relatively slow speed and a relatively high torque.
Advantage
(1) These Gear Reduction Motors have the characteristics of compact structure, reliable durability, high overload capacity, and large power.
(2) They are designed for high intensity to maintain intermittent or sudden changes in load.
(3) In addition, the motor can be selected according to the actual needs of any speed and various structural forms.
Gearbox Specification
Number of Stages | 2 | 3 | 4 | 5 | 6 | 7 |
Reduction Ratio | 10 | 20 | 50 | 150 | 300 | 750 |
30 | 60 | 180 | 350 | 900 | ||
70 | 210 | 450 | 1050 | |||
90 | 270 | 630 | 1350 | |||
Length of Gearbox (mm) | 19.0 | 21.5 | 24.0 | 26.5 | 29.0 | 31.5 |
DC Gear Motor Specification
Model | Rated Voltage (V) | Rated Torque （kg.cm） | Rated Speed (rpm) | Rated Current (mA) | Output Power (mW) | Torque at Stall (Kg.cm) | Current at Stall (mA) | No Load Speed (rpm) | No Load Current (mA) |
D332-018050 | 24.0 | 1.8 | 145 | 220 | 3000 | 10.0 | 1000 | 180 | 50 |
D332-090490 | 24.0 | 9.0 | 11 | 100 | 1200 | 40.0 | 700 | 12 | 45 |
D332-050270 | 12.0 | 5.0 | 9 | 100 | 500 | 30.0 | 400 | 11 | 25 |
D332-018070A | 12.0 | 1.8 | 48 | 150 | 1000 | 10.0 | 600 | 60 | 50 |
D332-018070B | 12.0 | 1.8 | 80 | 320 | 1600 | 12.0 | 2000 | 96 | 100 |
D332-013030 | 12.0 | 1.3 | 230 | 600 | 3500 | 8.0 | 2600 | 280 | 100 |
D332-013050 | 6.0 | 1.3 | 125 | 850 | 1900 | 8.0 | 3500 | 152 | 170 |
D332-030090 | 12.0 | 3.0 | 48 | 320 | 2000 | 18.0 | 1500 | 60 | 50 |
D332-018050 | 24.0 | 1.8 | 100 | 150 | 2100 | 10.0 | 700 | 125 | 45 |
Description
The DC gear motor, namely small gear motor, uses the gear of input shaft to mesh the gear of output shaft to achieve the goal of reducing speed. The function of the gearbox is to provide a relatively slow speed and a relatively high torque.
Advantage
(1) These Gear Reduction Motors have the characteristics of compact structure, reliable durability, high overload capacity, and large power.
(2) They are designed for high intensity to maintain intermittent or sudden changes in load.
(3) In addition, the motor can be selected according to the actual needs of any speed and various structural forms.
Gearbox Specification
Number of Stages | 2 | 3 | 4 | 5 | 6 | 7 |
Reduction Ratio | 10 | 20 | 50 | 150 | 300 | 750 |
30 | 60 | 180 | 350 | 900 | ||
70 | 210 | 450 | 1050 | |||
90 | 270 | 630 | 1350 | |||
Length of Gearbox (mm) | 19.0 | 21.5 | 24.0 | 26.5 | 29.0 | 31.5 |
DC Gear Motor Specification
Model | Rated Voltage (V) | Rated Torque （kg.cm） | Rated Speed (rpm) | Rated Current (mA) | Output Power (mW) | Torque at Stall (Kg.cm) | Current at Stall (mA) | No Load Speed (rpm) | No Load Current (mA) |
D332-018050 | 24.0 | 1.8 | 145 | 220 | 3000 | 10.0 | 1000 | 180 | 50 |
D332-090490 | 24.0 | 9.0 | 11 | 100 | 1200 | 40.0 | 700 | 12 | 45 |
D332-050270 | 12.0 | 5.0 | 9 | 100 | 500 | 30.0 | 400 | 11 | 25 |
D332-018070A | 12.0 | 1.8 | 48 | 150 | 1000 | 10.0 | 600 | 60 | 50 |
D332-018070B | 12.0 | 1.8 | 80 | 320 | 1600 | 12.0 | 2000 | 96 | 100 |
D332-013030 | 12.0 | 1.3 | 230 | 600 | 3500 | 8.0 | 2600 | 280 | 100 |
D332-013050 | 6.0 | 1.3 | 125 | 850 | 1900 | 8.0 | 3500 | 152 | 170 |
D332-030090 | 12.0 | 3.0 | 48 | 320 | 2000 | 18.0 | 1500 | 60 | 50 |
D332-018050 | 24.0 | 1.8 | 100 | 150 | 2100 | 10.0 | 700 | 125 | 45 |
