DS162A1-01&02
I.CH

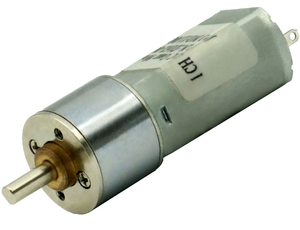

16MM DC Gear Motor
Description
DC Gear Motor is a power transmission mechanism, is to use the speed of the gear as a converter, the number of motor rotation deceleration to the number of rotation, and get larger torque of the mechanism.
The world technology has a great development because of emergence of Reduced Motor, the general development tendency of geared motor is as follows:
1. High water quality, high-performance. Cylindrical gears with the latest production and processing technology, achieved characteristics of small size, light weight, low noise, high efficiency and high reliability .
2. Building block type combination design. The basic parameter adopts the priority number, the size is neat, the parts versatility and interchangeability are strong.
3. Variety of types, deformation design more. To get rid of the traditional installation of a single base, adding a lot of installation methods, such as hollow shaft suspension, etc., and expand the application of Reduced Motor range.
Gearbox Specification
| Number of stages | 3 | 4 | 5 | 6 | |
| Gear ratio i | 11.1 | 22.2 | 83.3 | 200 | 600 |
| 16.7 | 33.3 | 100 | 250 | 750 | |
| 50 | 150 | 300 | 900 | ||
| 450 | 1350 | ||||
| Length of gearbox L (mm) | 12.8 | 14.2 | 15.6 | 17.9 | |
DC Gear Motor Specification
| MODEL | VOLTAGE V | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||
| SPEED rpm | CURRENT mA | SPEED rpm | TORQUE kg.cm | CURRENT mA | OUTPUT mW | TORQUE Kg.cm | CURRENT mA | ||
| D162-003100 | 3.0 | 70 | 60 | 52 | 0.3 | 170 | 160 | 0.8 | 450 |
| D162-001050 | 6.0 | 250 | 80 | 200 | 0.12 | 250 | 250 | 1.0 | 700 |
| D162-006200 | 6.0 | 60 | 80 | 45 | 0.55 | 250 | 250 | 3.0 | 700 |
| D162-007300 | 6.0 | 35 | 60 | 25 | 0.7 | 180 | 180 | 4.0 | 500 |
