DP323-03&04
I.CH

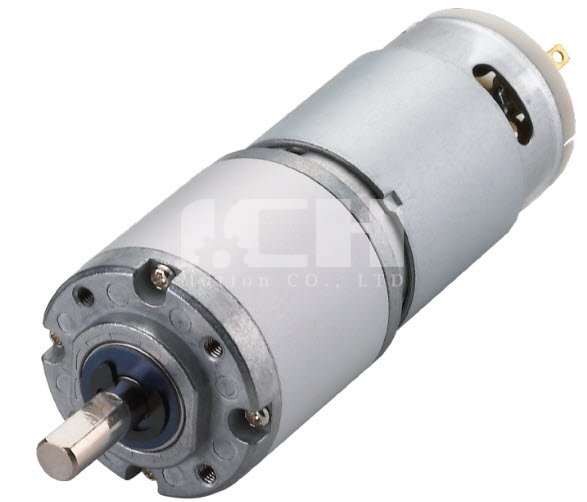

32mm Reducer Motor
The Specification in the table comes from the motor with planetary gearbox, planetar gears is different material gear, highest torque is 12kg.cm
Gear Motor Torque & Speed | |||||||||||||||
Reduction ratio | 1/5 | 1/14 | 1/19 | 1/27 | 1/35 | 1/51 | 1/71 | 1/100 | 1/139 | 1/189 | 1/264 | 1/516 | 1/721 | 1/939 | |
12V | Rated torque(Kg.cm) | 0.45 | 1.1 | 1.5 | 2.1 | 2.7 | 3.4 | 4.7 | 6.6 | 9.1 | 10 | 12 | 12 | 12 | 12 |
Rated speed(rpm) | 1140 | 430 | 310 | 221 | 170 | 117 | 83 | 60 | 44 | 32 | 24 | 12.9 | 9.5 | 7.2 | |
24V | Rated torque(Kg.cm) | 0.54 | 1.2 | 1.7 | 2.4 | 3.1 | 4 | 5.5 | 7.8 | 10 | 12 | 12 | 12 | 12 | 12 |
Rated speed(rpm) | 1170 | 445 | 320 | 229 | 176 | 121 | 87 | 62 | 45 | 34 | 25 | 13 | 9.6 | 7.2 | |
Rotation direction | CCW | ||||||||||||||
Length (L-mm) | 20.6 | 27 | 33.4 | 39.8 |
• Different material or different spec of gears can be customized chosen, all plastic, all metal, or helical gears versions.
• Modified versions for extended temperature and special environmental conditions are available.
The Specification in the table comes from the motor with planetary gearbox, planetar gears is different material gear, highest torque is 12kg.cm
Gear Motor Torque & Speed | |||||||||||||||
Reduction ratio | 1/5 | 1/14 | 1/19 | 1/27 | 1/35 | 1/51 | 1/71 | 1/100 | 1/139 | 1/189 | 1/264 | 1/516 | 1/721 | 1/939 | |
12V | Rated torque(Kg.cm) | 0.45 | 1.1 | 1.5 | 2.1 | 2.7 | 3.4 | 4.7 | 6.6 | 9.1 | 10 | 12 | 12 | 12 | 12 |
Rated speed(rpm) | 1140 | 430 | 310 | 221 | 170 | 117 | 83 | 60 | 44 | 32 | 24 | 12.9 | 9.5 | 7.2 | |
24V | Rated torque(Kg.cm) | 0.54 | 1.2 | 1.7 | 2.4 | 3.1 | 4 | 5.5 | 7.8 | 10 | 12 | 12 | 12 | 12 | 12 |
Rated speed(rpm) | 1170 | 445 | 320 | 229 | 176 | 121 | 87 | 62 | 45 | 34 | 25 | 13 | 9.6 | 7.2 | |
Rotation direction | CCW | ||||||||||||||
Length (L-mm) | 20.6 | 27 | 33.4 | 39.8 |
• Different material or different spec of gears can be customized chosen, all plastic, all metal, or helical gears versions.
• Modified versions for extended temperature and special environmental conditions are available.
DC Motor Specification | ||||||
Rated volt (V) | Rated torque (g.cm) | Rated speed (rpm) | Rated current (mA) | No load speed (rpm) | No load current (mA) | Weight (g) |
12 | 110 | 5950 | <=900 | 7300 | <=150 | 110 |
24 | 130 | 6160 | <=500 | 7300 | <=85 | 110 |
DC Motor Specification | ||||||
Rated volt (V) | Rated torque (g.cm) | Rated speed (rpm) | Rated current (mA) | No load speed (rpm) | No load current (mA) | Weight (g) |
12 | 110 | 5950 | <=900 | 7300 | <=150 | 110 |
24 | 130 | 6160 | <=500 | 7300 | <=85 | 110 |
Mechanical Dimensions |
Mechanical Dimensions |
